Ai-M-G/R Series

Built-in Gear / Rotary Actuator Type 2-Phase Closed Loop Stepper Motors

The Ai-M-G/R series 2-phase closed loop stepper motors with built-in gear/rotary actuator type are available in □ 42 mm, □ 60 mm frame sizes. The Ai-M-G/R series motors are ideal for high torque in a small space with compact size. The built-in rotary actuator types are ideal for ease of use and durability when connecting loads.

Enquiry Us

Description

Features

  • Built-in planetary gear type motor (Ai-M-G)
  • Built-in rotary actuator type motor (Ai-M-R)
  • Frame sizes : □ 42 mm, □ 60 mm
  • Compatible motor driver : AiS-D, AiC-D, AiC-D-CL, AiC-EC Series

Details

Closed Loop Stepper System SET Scheme

  • Built-in Gear Type
Power Driver signal input Motor frame size Motor Driver Set
DC Pulse input type 42mm, 60mm Ai-M-□MA-G5 AiS-D-□MA –
Ai-M-□MA-G7.2
Ai-M-□MA-G10
Integrated controller type RS-485 42mm, 60mm Ai-M-□MA-G5 AiC-D-□MA –
Ai-M-□MA-G7.2
Ai-M-□MA-G10
CC-Link communication type 42mm, 60mm Ai-M-□MA-G5 AiC-D-□MA-CL –
Ai-M-□MA-G7.2
Ai-M-□MA-G10
EtherCAT communication type 42mm, 60mm Ai-M-□MA-G5 AiC-D-□MA-EC –
Ai-M-□MA-G7.2
Ai-M-□MA-G10

※ The built-in gear type is not available as a set. Please order motors and drivers separately.



  • Built-in Rotary Actuator Type
Power Driver signal input Motor frame size Motor Driver Set
DC Pulse input type 60mm Ai-M-60MA-R5 AiS-D-60MA –
Ai-M-60MA-R7.2
Ai-M-60MA-R10
Integrated controller type RS-485 60mm Ai-M-60MA-R5 AiC-D-60MA –
Ai-M-60MA-R7.2
Ai-M-60MA-R10
CC-Link communication type 60mm Ai-M-60MA-R5 AiC-D-60MA-CL –
Ai-M-60MA-R7.2
Ai-M-60MA-R10
EtherCAT communication type 60mm Ai-M-60MA-R5 AiC-D-60MA-EC –
Ai-M-60MA-R7.2
Ai-M-60MA-R10

※ The built-in rotary actuator type is not available as a set. Please order motors and drivers separately.



Compact Size

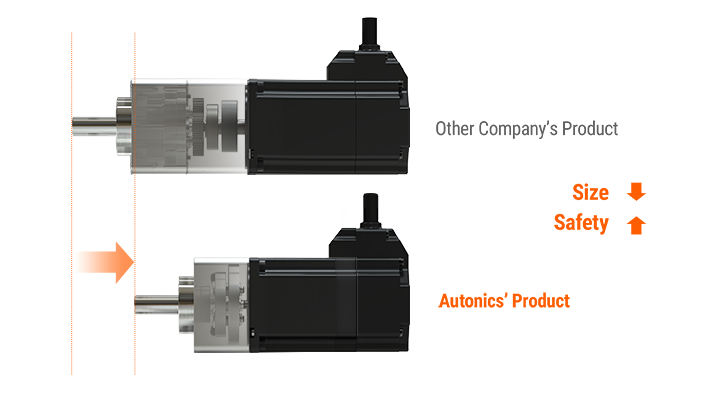

The gear/rotary actuator types are integrated into the motor for easy installation in a small space with compact size and light weight.
