AiSA Series

AC Power 2-Phase Closed Loop Stepper Motor System

The AiSA series is an AC powered 2-phase closed loop stepper motor system featuring integrated drivers. The AC powered motor system can maintain higher torque during high speed drive compared to DC type motors and do not require separate switching mode power supplies. The automatic current down function reduces the electric current when the motor stops (load change) to minimize heat generation.

Enquiry Us

Description

Features

※ 60 mm, 86mm Built-in Brake Type model have been added to the lineup

  • Closed loop system for precise real-time position control
  • High speed and high torque drive without missed steps
  • Supports 200-240 VAC AC power supply
  • Easy operation setting with external adjuster (Gain, speed filter, in-position, resolution)
  • 7-segment display for alarm/status reading
  • Torque control mode
  • Auto current down mode supported
  • Built-in brake type motors available
  • Built-in gear/ rotary actuator type motors available
Closed-Loop System
No Hunting
Quick Response
High Torque
AC Power
Torque Control Mode
Built-in Brake

Details

Closed Loop Stepper Motor System Set Scheme

  • Standard Type
Power Driver signal input Motor frame size Motor Driver Set
AC Pulse input type 60mm, 86mm AiA-M-□MA AiSA-D-□MA AiSA-□MA
AiA-M-□LA AiSA-D-□LA AiSA-□LA



  • Built-in Brake Type
Power Driver signal input Motor frame size Motor Driver Set
AC Pulse input type 60mm, 86mm AiA-M-□MA-B AiSA-D-□MA-B AiSA-□MA-BA
AiA-M-□LA-B AiSA-D-□LA-B AiSA-□LA -B



  • Built-in Gear Type
Power Driver signal input Motor frame size Motor Driver Set
AC Pulse input type 60mm, 86mm AiA-M-□MA-G5 AiSA-D-□LA –
AiA-M-□MA-G7.2
AiA-M-□MA-G10

※ The built-in gear type is not available as a SET, please purchase a motor/driver separately.



  • Built-in Rotary Actuator Type
Power Driver signal input Motor frame size Motor Driver Set
AC Pulse input type 60mm AiA-M-60MA-R5 AiSA-D-60LA –
AiA-M-60MA-R7.2
AiA-M-60MA-R10

※ The built-in rotary actuator type is not available as a SET, please purchase a motor/driver separately.



Closed Loop Stepper Motor Control

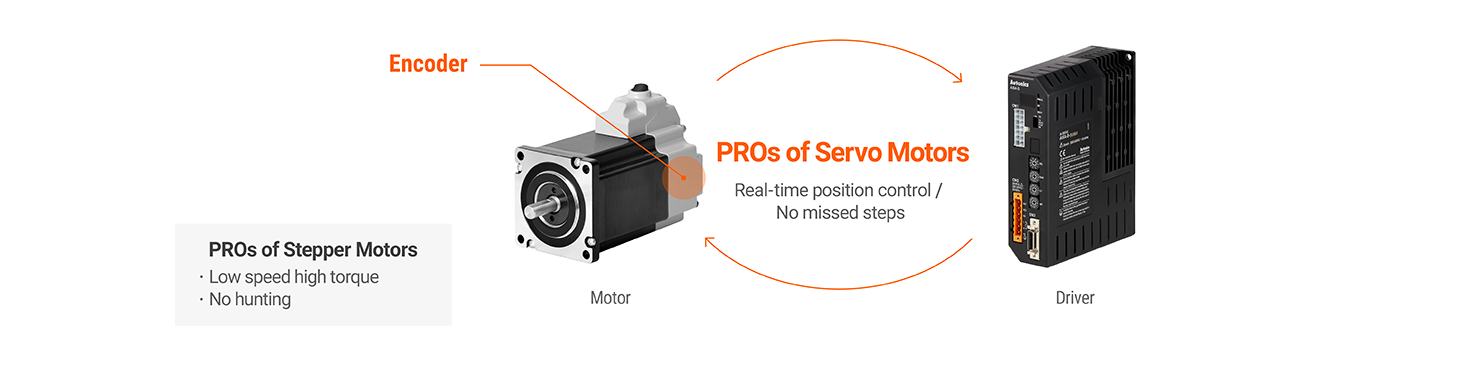

The stepper motor system offers accurate and precise position control through feedback from the integrated encoder without the hassle of tuning and vibration of conventional servo motors.

AC Power Supply

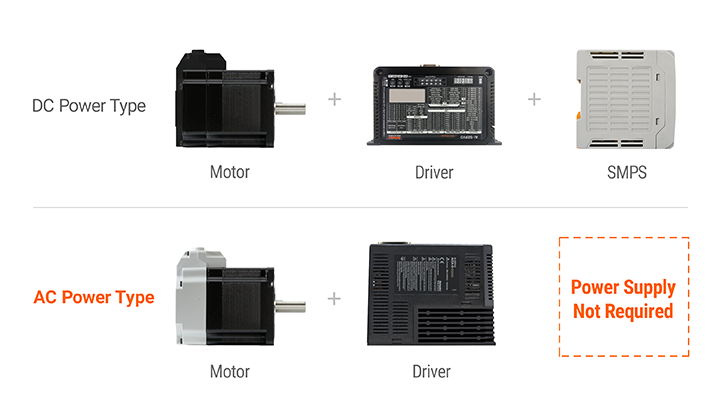

AC power supply closed loop stepper motor system can maintain higher torque during high speed drive compared to DC type motors. The motors also do not require separate power supplies, allowing more flexible installation options.

Auto Current Down Mode

Auto current down mode reduces the electric current when the motor stops (no load) to minimize heat generation.

Torque Control Mode

Torque control mode allows accurate operation of machinery by maintaining the initial torque set during motor operation.

Easy Tuning Using External Adjuster

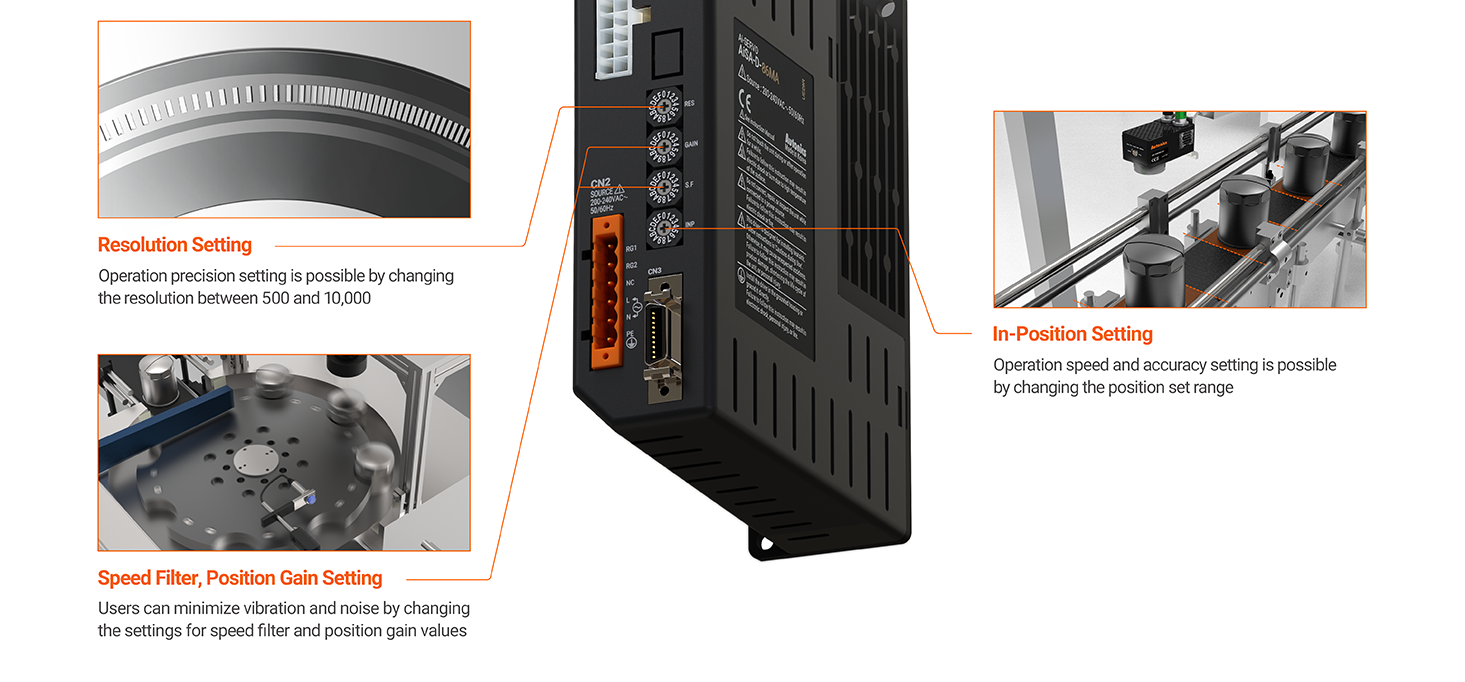

Users can easily change operation settings and range directly using the external adjuster

Built-in Brake Type Motors Available

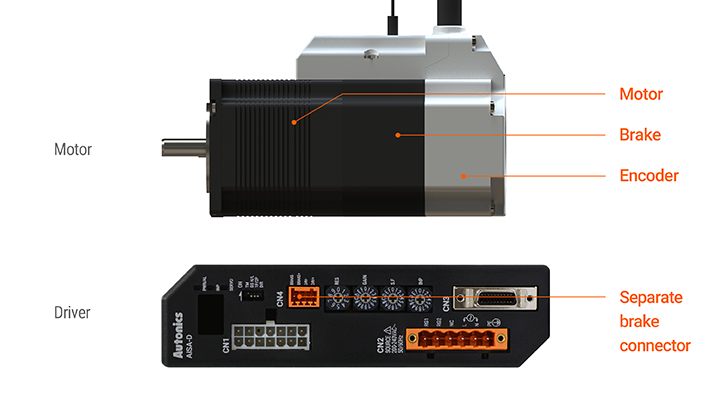

The built-in brake type motor and drivers allow safer control of vertical loads. The brakes are located towards the rear and the separate brake connector allows easy connection.

Applications

  • Sorters

    Closed loop stepper motor system used in automatic sorters to sort products to proper destinations.

  • Conveyor Belts

    Closed loop stepper motor system used to control distance on conveyor belts in SMT machinery.

  • PCB Loader

    Closed loop stepper motor system used to control move PCB boards into conveyors in PCB loaders.

  • Camera Module Inspection Machine

    Closed loop stepper motor system used to control movement and location of tables in camera module inspection machines.

  • Wafer Cassette Transfer Machine

    Closed loop stepper motor system used to control movement and location of wafer cassettes in semiconductor transfer machines.

  • Screw Tightening Machine

    AiCA closed loop stepper motor system used to tighten screws without separate torque sensors using torque control mode.
