ATE8 Series

Simple Operation Analog Timers

The ATE8 series timers offer simple configuration and operation with analog dial. Various time ranges and output options are available by model. Standard DIN W 48 x H 48 mm size provides convenient installation.

Enquiry Us

Description

Features

  • Simple configuration and operation with analog dial
  • Various time setting ranges
  • Standard DIN W48 × H48mm size
  • Power supply : 100-240VAC 50/60Hz, 24-240VDC

Details

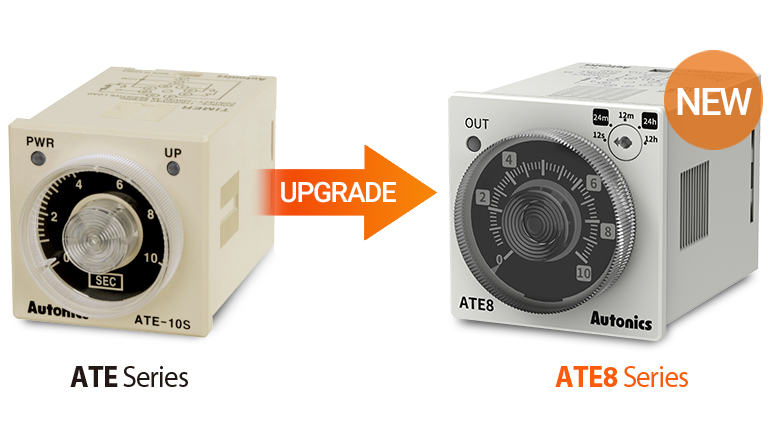

ATE Series Upgrade and Model Change Notice. The ATE series analog timer models are being upgraded and replaced with ATE8 series models. Please check the informations bellow.

ATE Series →(UPGRADE) NEW ATE8 Series

Model Change

Time limit(1c)+Instantaneous(1a)

Previous(ATE) New(ATE8)
1sec/10sec/1min/10min/1hour ATE-1S ATE8-41
3sec/30sec/3min/30min/3hour ATE-3H ATE8-43
6sec/60sec/6min/60min/6hour ATE-6H ATE8-46
12sec/12min/24min/12hour/24hour – ATE8-4C



Time limit(2c)

Previous(ATE) New(ATE8)
1sec/10sec/1min/10min/1hour ATE1-10M ATE8-41D
ATE1-10S
3sec/30sec/3min/30min/3hour ATE1-30M ATE8-43D
ATE1-30S
ATE1-3M
ATE1-3S
6sec/60sec/6min/60min/6hour ATE1-60S ATE8-46D
ATE1-6H
ATE1-6M
ATE1-6S
12sec/12min/24min/12hour/24hour ATE1-12H ATE8-4CD
ATE1-6S



Time limit(1c)+Instantaneous(1c)

Previous(ATE) New(ATE8)
1sec/10sec/1min/10min/1hour ATE2-10M ATE8-41E
ATE2-1S
3sec/30sec/3min/30min/3hour ATE2-3M ATE8-43E
ATE2-3S
6sec/60sec/6min/60min/6hour ATE2-60M ATE8-46E
ATE2-60S
ATE2-6S
12sec/12min/24min/12hour/24hour ATE2-24H ATE8-4CE



Ordering Information

Previous : ATE Series, ATE8 Series Ordering Information - See below for details

Power Supply

Previous : ATE Series, ATE8 Series Power Supply - See below for details

Power Consumption

Previous : ATE Series, ATE8 Series Power Consumption - See below for details

Certifications

Previous : ATE Series, New : ATE8 Series

Dimensions

Previous : ATE Series, New : ATE8 Series *Changed Product dimensions (Reduced rear-length, etc.)

Bracket

Previous : ATE Series Model : PG348-W, New : ATE8 Series Model:BK-S *48x48mm Screw Mount Brackets → New Clip-on Bracket -previous:attach the bracket and mount on panels using tow screws, -New:attach the bracket and clip on to panels (no screws required)

Panel Cut-Out Dimensions

Previous : ATE Series, New : ATE8 Series *Changed Panel Cut-Out dimensions

Description

Previous : ATE Series, New : ATE8 Series Description - See below for details

Connection Diagram

Previous : ATE Series, New : ATE8 Series Common Power Supply Terminals - Terminal 4(Previously 110V) Not used
