B7VA Series

Voice Buzzers

The B7VA series voice buzzers offer clear notification in hazardous working environments with 8 different notifications and alerts up to 90 dB. The B7VA series offers LED indicators for easily checking the operation status. Internal and external memory types are available for various applications.



Enquiry Us

Description

Features

  • Sound pressure level: up to 90dB±10% (at 1 m)
  • Mounting hole : Ø72 mm, panel thickness: ≤6mm
  • Check operation status with operation indicator (LED indicator)
  • 8 different alarms
  • Switch between single or repeat play (internal memory type)
  • Inserting voice or melody available (external memory type)
  • Switch between NPN/PNP
  • IP65 protection rating
Up to 90 dB
LED Indicator
8 Alarm Sounds
External Memory Type Available
IP65 Protection Rating

Details

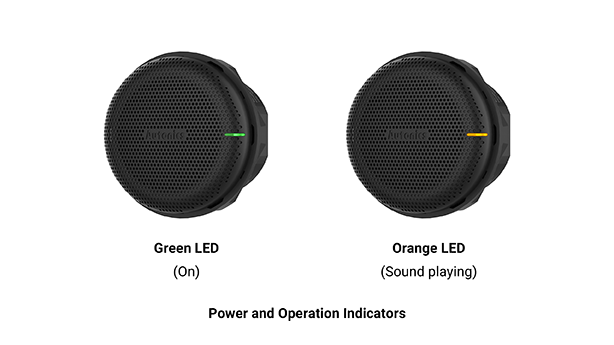

LED Indicators

LED indicators are available to check operation status visually and audibly.

B7VA Series detailed features image

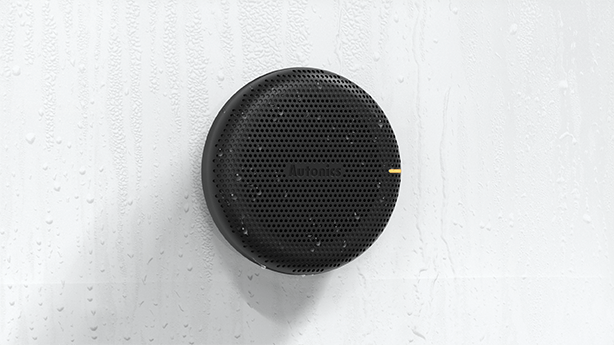

IP65 Protection Rating

The front plate has an IP65 protection rating protecting from wet or dusty environments.

B7VA Series detailed features image

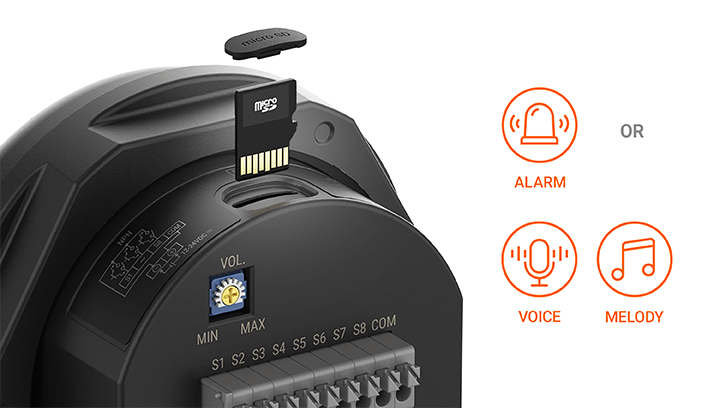

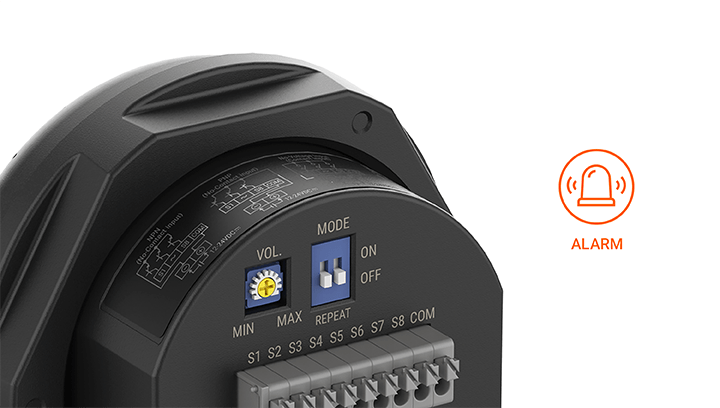

Internal/External Memory Type Available

Internal memory types offer pre-loaded alarm sounds without requiring additional settings. External memory type allows users to insert their own voice or melody settings

B7VA Series detailed features image
B7VA Series detailed features image

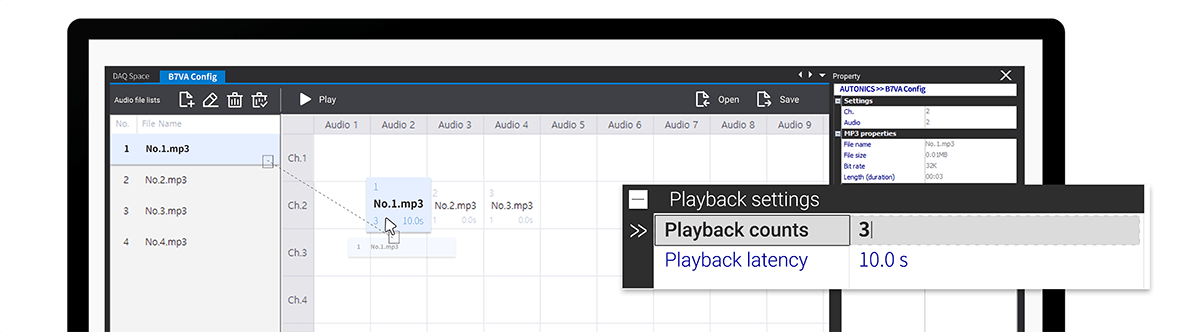

Easy Setup for Sound Files

With the DAQMaster software, users can easily set sound files to desired channel or order. Users can also monitor the sound file, playback count, playback latency, etc. through the software.

Supported file formats: MP3, WAV

B7VA Series detailed features image

Applications

  • Packaged Goods Transport Conveyors

    Voice Buzzers protect workers from hazards at the gate of machinery and production lines.
