BD Series

Laser Displacement Sensors (Sensor Head and Amplifier Unit)

The BD series laser displacement sensors can measure thickness, width, level difference, disparity, curve, evenness of target objects by detecting the amount of displacement. The sensors offer accurate and stable measurement with minimal influence from target color or material. The sensor head and amplifier unit are detachable for easier maintenance and up to 8 sensor amplifier units can be interconnected with mutual interference prevention function.

Enquiry Us

Description

Features

  • Reference distance :
    – Diffuse reflective type: 30/65/100/300/600 mm
    – Regular reflective type: 30/65/100 mm
  • Easy maintenance with detachable sensor head/amplifier unit
  • Maximum resolution: 1㎛ (vary by model)
  • Accurate measurement with minimal influence from target color or material (diffuse reflective type)
  • Stable measurement of reflective or transparent material (regular reflective type)
  • Interconnection of up to 8 sensor amplifier units
    : Mutual interference prevention function and auto channel sorting
  • Various calculation functions supported (addition, subtraction, average)
  • Various filter functions for stable measurement (movement average, differential, median)
  • Auto sensitivity adjustment (1-point, 2-point teaching)
  • Dedicated software provided (atDisplacement)
  • Brackets for different installation angles (regular reflective type)
  • DIN rail and wall mount support (bracket accessory required for wall mount)
  • Sensor head: IP67 protection structure

※ BD-300/600 sensor head models are only supported with firmware version 5.0 or higher of the amplifier unit (BD-A1) and communication converter (BD-C).

Reference Distance
Detect Various Materials (including transparent objects)
Protection Rating
Mutual Interference Prevention
Dedicated Bracket
Extension Cable (Sold Separately)

Details

Accurate Displacement Measurement on Various Materials

The sensors can accurately detect various target materials including black/white paper, stainless steel, rubber, PCB, etc. The regular reflective type allows stable measurements on reflective and transparent materials.

BD Series detailed features image

Easy Configuration with Movement Average, Differential, and Median Filters

Movement average, differential, and median filters allow for accurate and stable correction in measurement values in the event of sudden changes from mechanical noise or other variables.



Various Calculation Functions

Supports various calculation functions (OFF, ADD-AB, SUB-AB, AVG)
– OFF: independent measurement (calculation function not used)
– ADD-AB: Adds the measured values from sensor heads A/B (used to measure thickness)
– SUB-AB: Subtracts the measured values from sensor heads A/B (used to measure level difference/ disparity)
– AVG: averages the measured values from all connected sensor heads (used to measure evenness)
– Cannot use more than 2 calculation functions with interconnected sensor amplifier units

BD Series detailed features image

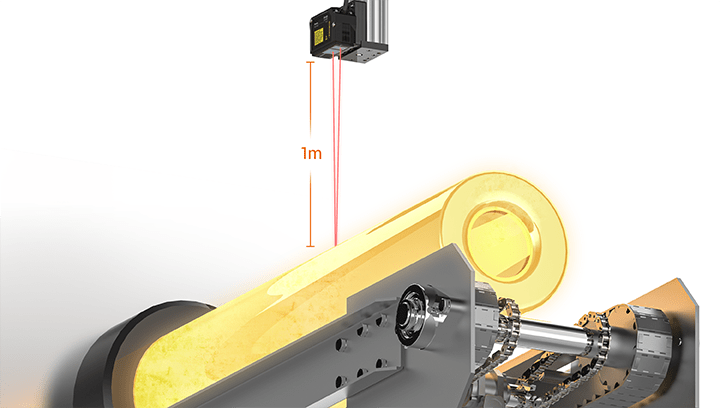

Capable of Measuring up to 1 m

The BD-600 model is capable of measuring up to 1 m suitable for in harsh environment including high temperatures, and also features easy measurement of width and step of thick steel plates.

BD Series detailed features image
BD Series detailed features image

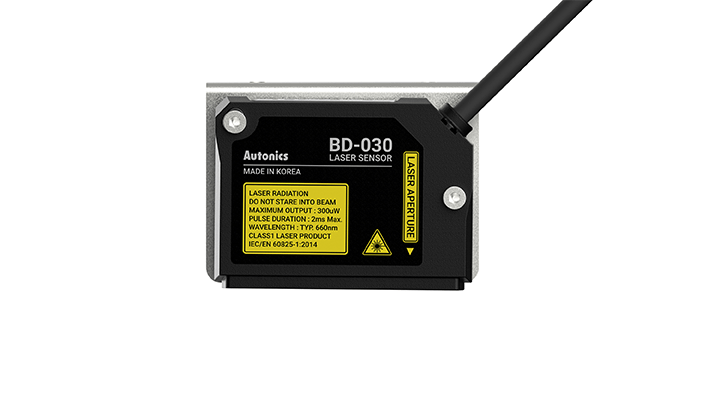

Maximum Resolution of 1 ㎛

Laser displacement sensors feature a maximum resolution of 1 ㎛ (BD-030) for stable and precise measurements.
The BD-300 model features resolution of 20 ㎛

BD Series detailed features image

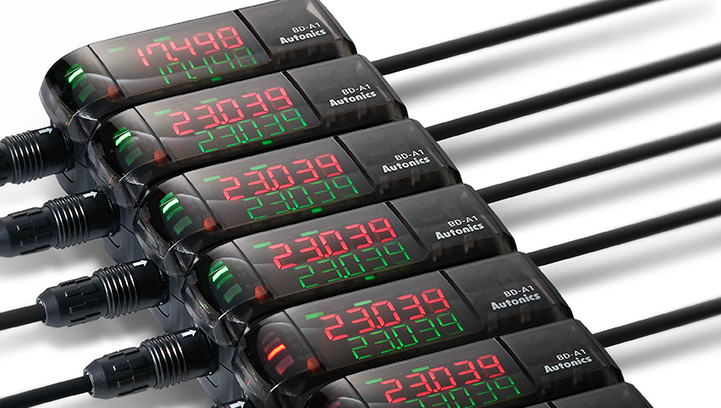

Interconnection of Sensor Amplifier Units and Mutual Interference Prevention

Up to 8 sensor amplifier units can be interconnected. The channels for the amplifier units are automatically sorted when connected together. (Each sensor amplifier unit requires independent power supply)

BD Series detailed features image

Brackets Different Installation Angles (Regular Reflective Type)

Dedicated brackets are provided for each model for accurate resolution. The regular reflective type that requires installation at a specific angle by tilting the sensor head provides convenience with dedicated brackets by installation angles.

BD Series detailed features image
Diffuse reflective type

BD Series detailed features image
Regular reflective type

Dedicated Software ‘atDisplacement’

Dedicated software ‘atDisplacement’ offers user-friendly interface with live data, life graphs and wave graphs for easy monitoring of various measurement values in real-time. Set values can be immediately checked during the setting.

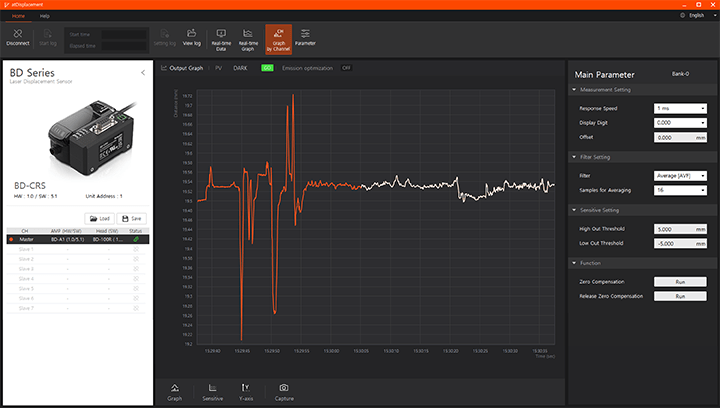

Channel Graph

BD Series detailed features image
Real-time monitoring of set value (SV).

Live Data

BD Series detailed features image
Displays the status of amplifier unit and measured value to number. The data is automatically scaled for ease of use in future analysis.

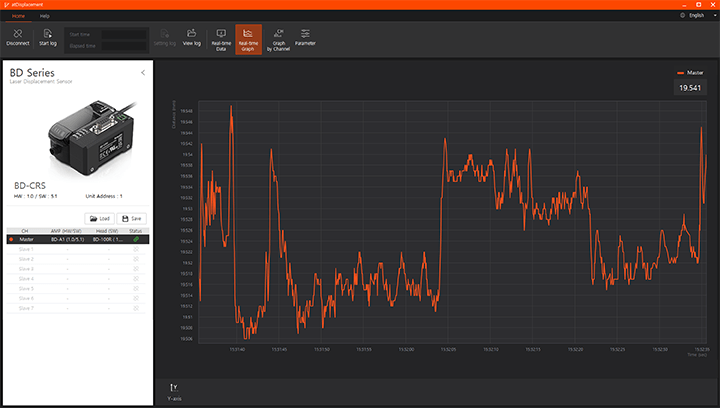

Live Graph

BD Series detailed features image
Displays the graph color of amplifier unit per channel and present value (PV).

Wave Graph

BD Series detailed features image
Displays received light waveform per unit in real time. Up to 8 sensor units can be monitored.

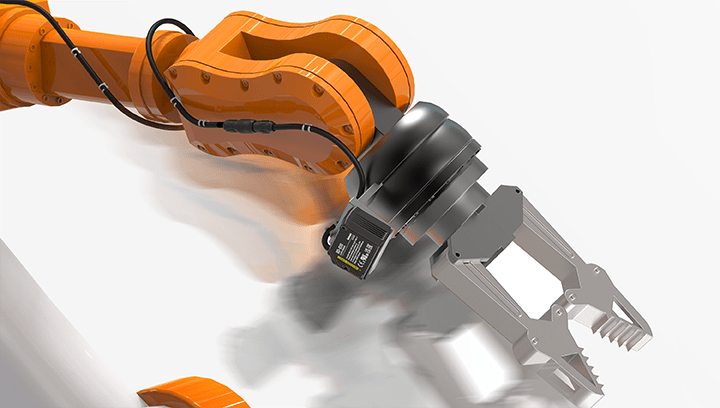

Robot Type Extension Cables for Moving Applications (Sold Separately)

1 m, 2 m, 5 m, 10 m cables are available for application in diverse environments without breaking.

BD Series detailed features image

Applications

  • Automobile Parts Manufacturing

    Displacement sensors can be used to measure level difference of various automobile parts.

  • Automobile Parts Manufacturing

    Displacement sensors can be used to measure evenness of automobile parts such as automobile wheels.

  • Engine Block Manufacturing Line

    Robot type extension cables can be used with displacement sensors to detect moving trays in manufacturing lines without worry of breaking.

  • Engine Block Manufacturing

    Displacement sensors can be used to measure height bonding dispensed on engine blocks.

  • Steel Plate Manufacturing

    Displacement sensors can be used to measure thickness of steel plates.

  • Robot Position Control

    Robot type extension cables can be used with displacement sensors during robot position control without worry of breaking.

  • Semiconductor Production Line

    Displacement sensors can be used to measure evenness of wafer surfaces or detect presence of wafers.
