Description
- Ultra-slim width of only 7.2 mm
- W 7.2 x H 18.6 x L 9.5 mm (through-beam type)
- W 7.2 x H 24.6 x L 10.8 mm (retroreflective type, convergent reflective type)
- Detection methods and minimum target size
- Through-beam type (BTS1M): Ø2 mm
- Retroreflective type (BTS200): Ø2 mm (at distance 100 mm)
- Convergent reflective type (BTS15/BTS30): Ø0.15 mm (at distance 10 mm)
- Detecting distance may vary by environmental factors
- Maximum detection distance: 1 m (through-beam type)
- Stability indicator (green LED) and operation indicator (red LED)
- Stainless steel 304 mounting brackets
- IP67 protection structure (IEC standard)
 |
 |
 |
 |

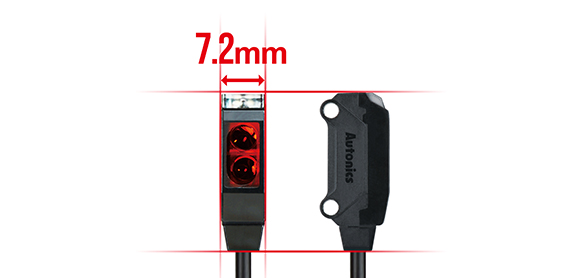

Ultra-Slim Size
The ultra-compact sensors measure just 7.2mm wide, making them ideal for installation in limited spaces or small machinery.

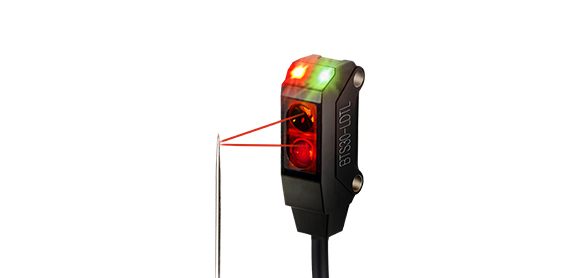

Detect Tiny Targets as Small as Ø0.15mm
The sensors can detect tiny targets as small as Ø0.15mm, including metallic wires, semiconductor chips, thin thermocouples, and more.
Detect Tiny Targets as Small as Ø0.15mm
The sensors can detect tiny targets as small as Ø0.15mm, including metallic wires, semiconductor chips, thin thermocouples, and more.
Detect Tiny Targets as Small as Ø0.15mm
The sensors can detect tiny targets as small as Ø0.15mm, including metallic wires, semiconductor chips, thin thermocouples, and more.

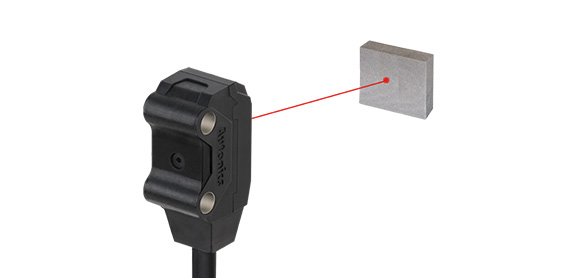

Visible Detection Spot
Visible red light source allows users to easily check sensing spots for installation.

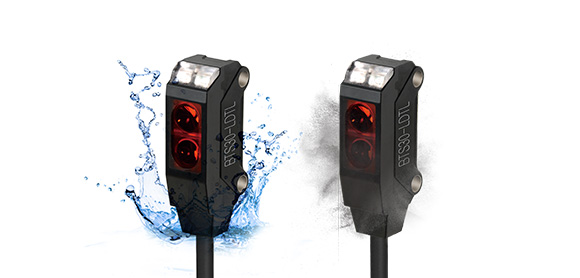

IP67 Protection Structure
IP67 protection structure allows the units to be safely applied in environments with dust or water.
Applications
-
Potato chip manufacturing and packaging process
This is an application example of potato chip manufacturing and packaging process using Autonics products.
-
Brake Disc Manufacturing
Ultra-compact photoelectric sensors are used to detect the presence of brake discs in manufacturing lines.
-
Transfer of Packaged Goods
Ultra-compact photoelectric sensors are installed on a conveyor belt, to detect the presence of finished goods being transported.
