PT (5-Pin Connector) Series

Sensor Distribution Boxes (M12 5-Pin Connector Type)

The PT series 5-pin M12 connector sensor distribution boxes offer flexibility for installing multiple sensors in various applications. With 4, 6, and 8 ports, the distribution boxes can supply power and receive signals for sensors using M12 connectors. The PT series can simplify complicated wiring and ease maintenance work. Operation status can be easily checked using power and operation indicators (red, green LED).

Enquiry Us

Description

Features

  • 5-pin M12 connector types (cable/connector/spring terminal/plug-in terminal)
  • Supply power to multiple sensors using a single power supply
  • Simplify complicated wiring and maintenance work
  • Check operation status with LED indicators (green, red LED)
  • Supports 1-signal, 2-signal (DC 3-wire, 4-wire type)
  • IP67 protection structure with waterproof cover (IEC standard)
  • IP52 protection structure with protection cover (IEC standard)

*New 5-pin M12 connector spring terminal and plug-in terminal types (black/blue) have been added to the line-up.

Details

Available Models

5-Pin M12 Connector Type (Cable Type) PT Series

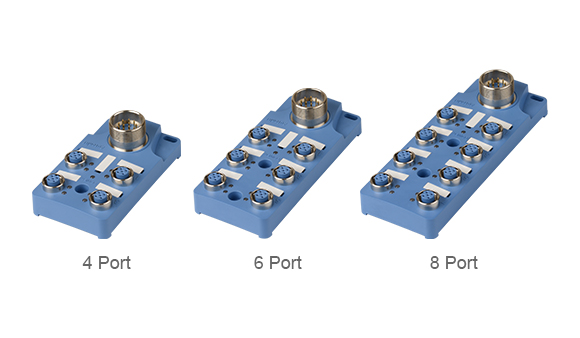

4Port, 6Port, 8Port
Operation Indicator (Green LED), Power Indicator (Red LED), 5-Pin M12 Connector



5-Pin M12 Connector Type (Connector Type) PT-C Series

4Port, 6Port, 8Port
M23 Connector, Operation Indicator (Green LED), Power Indicator (Red LED), 5-Pin M12 Connector



5-Pin M12 Connector Type (Spring Terminal Type) PT-S Series

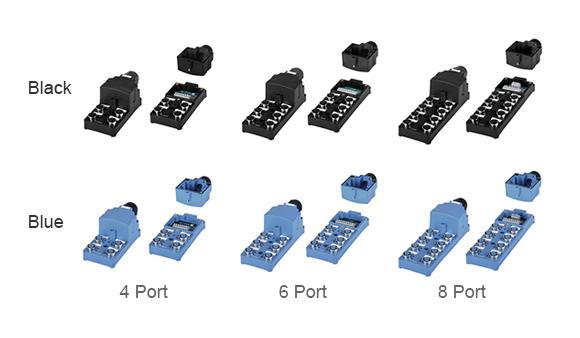

Black, Blue : 4Port, 6Port, 8Port

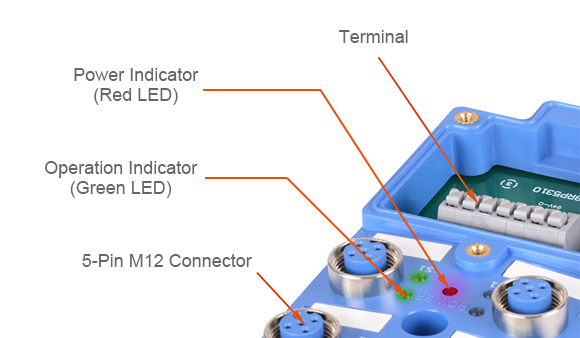

Terminal, Power Indicator (Red LED), Operation Indicator (Green LED), 5-Pin M12 Connector

5-Pin M12 Connector Type (Plug-In Terminal Type) PT-P Series

Black, Blue : 4Port, 6Port, 8Port

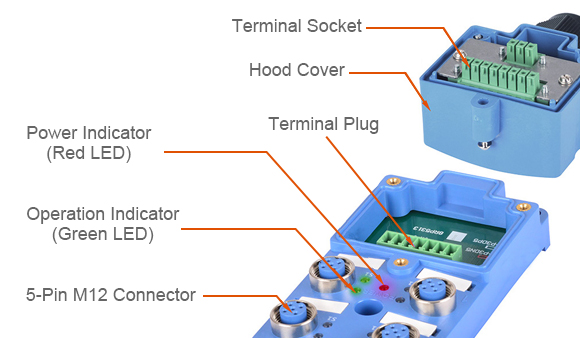

Terminal Socket, Hood Cover, Terminal Plug, Power Indicator (Red LED),Operation Indicator (Green LED), 5-Pin M12 Connector

Applications

  • Automated Automotive Manufacturing Process

    Automated Automotive Manufacturing Process – Stamping process / Welding process / Painting process

  • Automobile Engine Manufacturing

    Sensor distribution boxes are used in automobile engine manufacturing lines to supply power and signal to individual sensors.
