TR1D Series

Slim Single Display PID Temperature Controllers

The TR1D series slim single display PID temperature controllers feature high-speed sampling cycle rate of 50ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with simultaneous heating and cooling control. The space-saving design with 22.5mm width and DIN rail bracket allows easy installation in limited spaces. The front display can be easily used to set the control status and parameters.

Enquiry Us

Description

Features

  • Compact, space-saving design with 22.5mm width size
  • 50ms high-speed sampling and ±0.3% display accuracy
  • Simultaneous heating and cooling control function
  • Switch between current output and SSR drive output
  • Easy mount on DIN rails
  • RS485 (Modbus RTU) communication output model available – Protocol: Modbus RTU or ASCII – Communication speed: up to 115,200 bps
  • Parameter setting via PC (USB or RS485 communication) – Comprehensive device management software (DAQMaster) provided
  • Heater disconnect alarm function (CT input) – Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
  • Screen protection function
Slim-Size
DIN Rail Mount
High Speed Sampling
Measurement Accuracy
Simultaneous Heating and Cooling Control
Output Selection
RS485 Communication (Modbus RTU/ASCII)
Set Parameters With PC

Details

22.5mm Width Slim-Size

The space-saving design with 22.5mm width allows easy installation in limited spaces.

50ms High-Speed Sampling Cycle

Users can select between 50/100/250 ms sampling cycle speed depending on requirements. The 50 ms high-speed sampling cycle rate allows ideal temperature control in applications requiring high-speed response rates.

Easy DIN Rail Mount with Brackets

Bottom bracket handle allows easy mounting & detachment on DIN rails without additional tools.

Simultaneous Heating and Cooling Control

Increase work efficiency by controlling heating and cooling at same time.

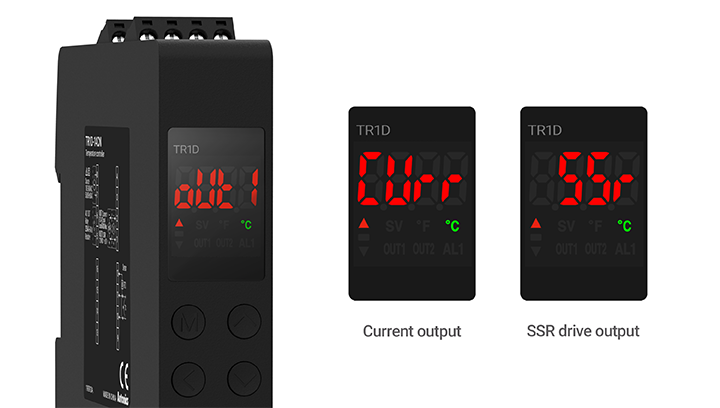

Switch Between Current Output and SSR Drive Output

Users can select between current output and SSR drive output through parameter settings of a single unit.

Screen Protection Function

The screen protection function turns the display off when there is no key input during user-set periods to save energy and display life.

Applications

  • Edge Banding Machine

    Temperature controllers are used to control heat levels for heating and melting raw materials.

  • Rubber Extrusion / Plastic Injection Molding Process
